Name: Elite 750 + Nissan Patrol TB42E/TB45E Plug 'n' Play Adaptor Harness Kit
Price: 2103.64 AUD
Availability: InStock

Elite 750 + Nissan Patrol TB42E/TB45E Plug 'n' Play Adaptor Harness Kit

Product Details

Elite 750 + Nissan Patrol TB42E/TB45E Plug 'n' Play Adaptor Harness Kit

Suits: Plug 'n' Play replacement of the factory ECU for Nissan Patrol/Safari TB42E/TB45E with automatic or manual transmissions. (No shift re-programming/control etc) TB42E/TB45E only.

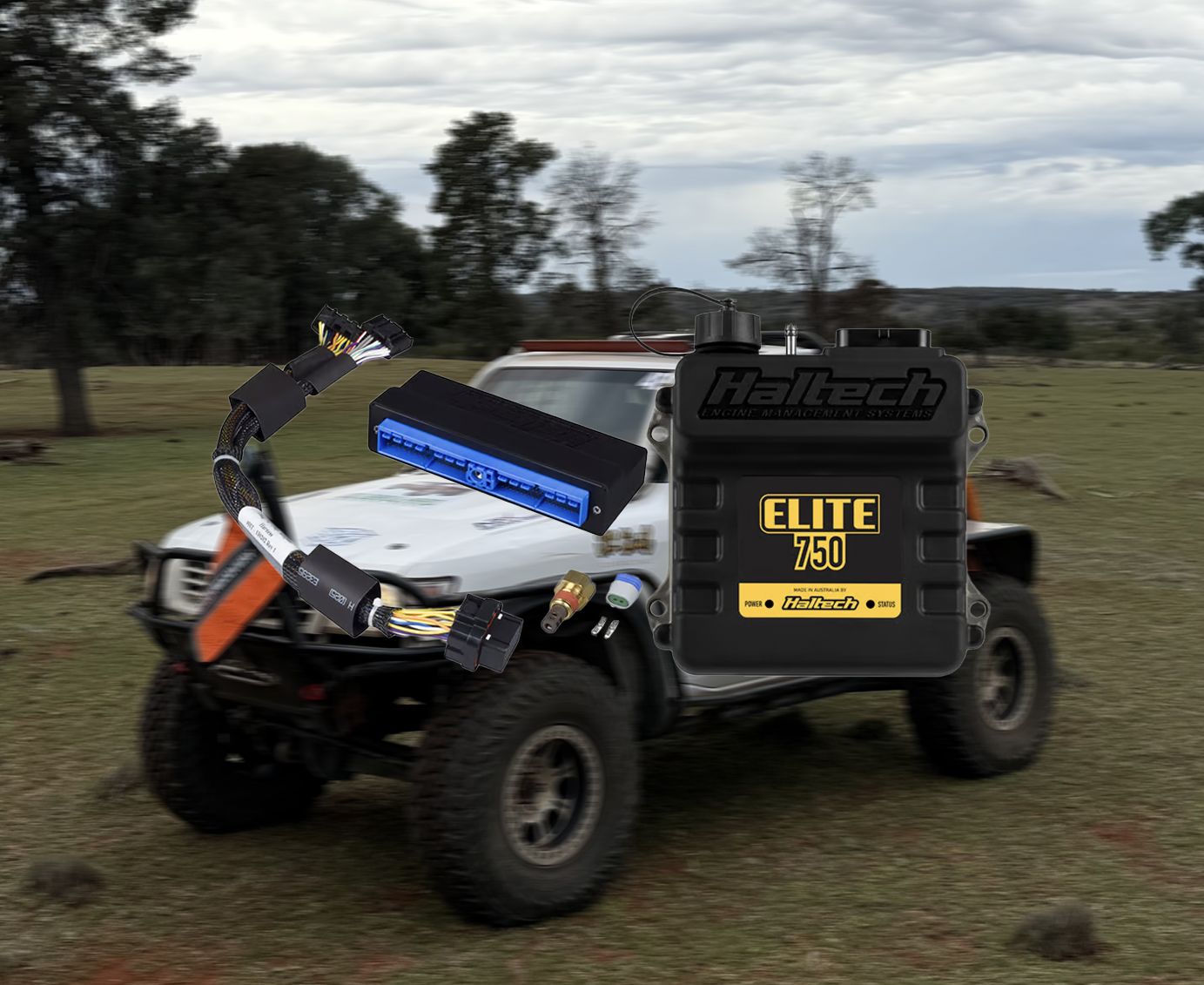

Includes: Elite 750 ECU, injection molded plastic plug 'n' play adaptor harness, M14 x 1.5 air temp sensor with matching plug and pins, auxiliary I/O 16 Pin TYCO plug and pins. waterproof USB cap, USB programming cable.

ECU OVERVIEW

The Elite 750 is an entry-level ECU offering many features available on the more advanced Elite 1500/2500 at an affordable price.

Featuring a robust, environmentally sealed, waterproof case, 6 fuel and 6 ignition channels, on-board data logging and flex fuel tuning the Elite 750 is a powerful, compact ECU.

Like all Elite Series ECUs, the Elite 750 ECU now uses the Nexus Software Programmer (NSP) that brings levels of functionality and user friendliness never seen before in an engine control package. Together they offer true cutting edge technology to tuners and performance enthusiasts worldwide.

Supports 1 to 12 Cylinder engines
1 to 3 Rotor engines
Normally aspirated or forced induction
Load sensing by Throttle Position (TPS), Manifold Absolute Pressure (MAP) or Mass Air Flow (MAF)

Staged, Sequential, semi sequential, batch or multipoint injection patterns
Distributor ignition systems, multi-coil systems, expand CDI range or Haltech Multiplex CDI systems
Connect to a wide range of display dashes and expansion devices via CAN.
Waterproof case (IP67) (with USB cover fitted)
34 position AMP connector
6 x Fuel Injection Outputs (peak and hold (0-8A peak / 0-2A hold)
6 x Ignition Outputs
2 x Dedicated Engine Position inputs with extensive trigger type support
2 x Digital Pulsed Inputs
5 x Digital Pulsed Outputs
2 x Analogue Voltage Inputs
3 x Dedicated Inputs (Throttle Position, Coolant Temperature & Air Temperature)
Internal 3Bar MAP sensor rated up to 200kPa of boost (2Bar/29psi)
Up to 45 channels of Input & Output (I/O) expansion (via CAN)
USB Laptop Communication (Windows)
On-board data logging
NSP Calibration Software - Intuitive and easy to use

If you are using a factory harness and are after an easy ECU upgrade, take a look at Haltech Plug'n'Play Adaptor Kits. These adaptors plug directly into your Haltech ECU and have a set of factory connectors on the other side which plug straight into the factory harness.

A simple Haltech Plug'n'Play product that allows you to be up and running in just a few hours.
The quick start guide will walk you through installation of the Haltech Plug'n'Play adaptor into your vehicle.
The guide is accompanied by the full ECU manual and Software located on the CD or USB key provided with the ECU to refer to while completing your installation and configuration.

If you have any questions or can't find the Haltech part you're after, please feel free to contact us! Please note that these are not a stocked item so allow 1-2 weeks turn around, if it's urgent, please contact us!
