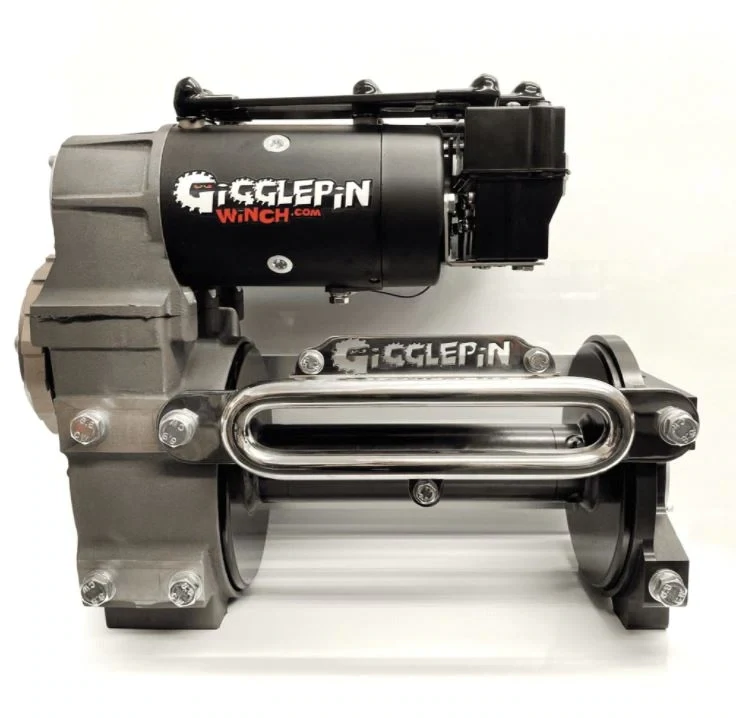

Gigglepin GP100 Twin Motor Winch with Bow 2 Plus Motors

Product Details

It’s Strong, it’s Light and installed with legendary Gigglepin reliability!

GP100 TWIN MOTOR COMPETITION WINCH

Available with six different ratios, three different drum lengths with options to up your speed further puts this winch in a class of its own and is continuing to raise the standard for high performance winching.

10kg lighter than other twin motor winches and more options overall.

Tested vigorously, the GP100 won its first competitive outing and has been dominating the off-road world (worldwide) ever-since, winning such events as the Croatia Trophy, Breslau Rallye, Graf Trophy, Porugal Extrem, Thailand Extreme, the Ultra4 European Championship, to name a few. With off-load line speeds from 25m up to 180m per minute, there is a GP100 for everyone!

Note: Can be fitted with Hurricane and/or Hellfire Gears at time of order at no extra cost - see chart below.

It has the following amazing features-

Six different ratios – Standard, +15%, +25%, +40%, +50% & +60% to suit all applications,
Super smooth air operated FreeSpool drum,
Stronger, lightweight, cast aluminium housings,
High performance EN36 heat treated gears,
Three drum sizes - Short 10” (254mm), Standard 13” (+76mm), Long 14.5” (+114mm),
11 Roller bearings for silky smooth operation,
Removable stainless steel Brake Pawl mount,
Fully submersible,
Supplied with Bow Motor 2 (12V or 24V),
Gigglepin Solenoids, PowerBars and Wiring (Pro 100 as Standard, Pro 150 as optional extra),
18 symmetrical M12 mounting points,
Super strong polished stainless steel Fairlead,
External ratchet brake,
Billet drum end plate with rear BraceBars,
Oil Filled gearbox for perfect lubrication,
Large drain and filler plugs,
Serial numbered for traceability,
Can be supplied with Gigglepin MBS system,
Designed and built in UK.

THE BEST WINCH YOU WILL EVER OWN!

3 Year Mechanical Warranty (Motors and Solenoids not included)

* Can be supplied with Hellfire Gears at no extra cost to give more ratio options!

Dimensions sheets for all three drum sizes available to download here:

Standard Drum (76mm Longer than Warn 8274)
Short Drum (Same as Warn 8274)
Long Drum (114mm Longer than Warn 8274)

PLEASE NOTE, THESE WINCHES ARE ORDERED UPON SALE, DUE TO LARGE AMOUNT OF CUSTOMISATIONS

IF YOU HAVE ANY QUESTIONS, PLEASE FEEL FREE TO CONTACT US

Winch Weights & Shipping Weights -

Winch Type	Actual Weight	Shipping Weight
GP100 Standard Drum	55.5kg	64kg
GP100 Short Drum	53.6kg	62kg
GP100 Long Drum	56.5kg	65kg
GP100 Standard Drum with MBS	58.5kg	67kg
GP100 Short Drum with MBS	56.6kg	65kg
GP100 Long Drum with MBS	59.5kg	68kg

Standard GP100 ratios Fitted with Hellfire gears

STD 133.28:1 Becomes +41% 78.52:1
+15% 115.41:1 Becomes +49% 67.99:1
+25% 100.94:1 Becomes +55% 59.46:1
+40% 83.75:1 Becomes +63% 49.34:1
+50% 66.56:1 Becomes +71% 39.21:1
+60% 53.68:1 Becomes +76% 31.62:1

Standard GP100 ratios Fitted with Hurricane gears

STD 133.28:1 Becomes +31% 91.82:1
+15% 115.41:1 Becomes +40% 79.50:1
+25% 100.94:1 Becomes +48% 69.53:1
+40% 83.75:1 Becomes +57% 57.69:1
+50% 66.56:1 Becomes +66% 45.86:1
+60% 53.68:1 Becomes +72% 36.98:1

Standard GP100 ratios Fitted with Hurricane and Hellfire gears

STD 133.28:1 Becomes +51% 54.09:1
+15% 115.41:1 Becomes +65% 46.84:1
+25% 100.94:1 Becomes +69% 40.96:1
+40% 83.75:1 Becomes +74% 33.99:1
+50% 66.56:1 Becomes +80% 27.01:1
+60% 53.68:1 Becomes +84% 21.78:1

24V system is available upon request.
If you are unsure of your winching requirements, or have any questions or queries, please feel free to contact us!
