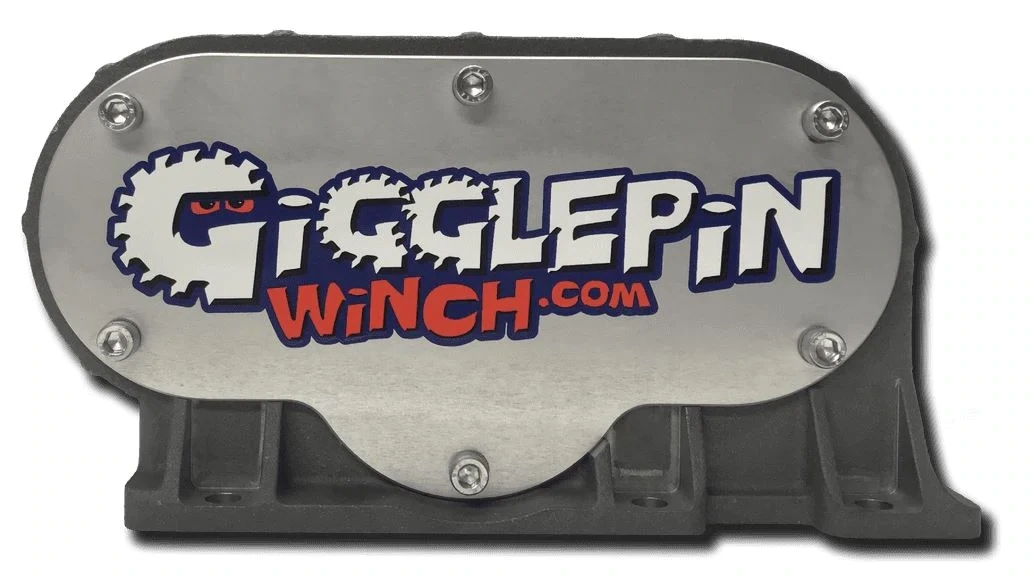

Gigglepin Twin Motor Top Housing for Warn 8274 & GP Winches

GIGGLEPIN TWIN MOTOR TOP HOUSING FOR WARN 8274 & GP WINCHES

Twice the Power, Twice the Speed

We launched our first Twin Motor Top Housing in 2005 and it rapidly became a legend! In 2017 we launched this NEW version and it is already dominating podiums worldwide.

This Twin Motor Top Housing features a heat treated aluminium casting, EN36 internal gears, is has huge mechanical strength and can be supplied with six different ratios - Standard, +15%, + 25%, + 40&, +50% or + 60%.

It is 1kg lighter than the first generation housing, has six super smooth roller bearings, 'O' ring seal, filler bung and a 1/8 bsp breather.

Fits all Warn 8274/8074 and all Gigglepin Lower Housings and is supplied with 1 x Gear ratio of your choice, mounting bolts and instructions.

Advantages of the All New Twin Motor Top Housing are:

• New Lighter stronger casting,
• New lighter stronger gear set,
• Six super smooth roller bearings,
• Narrower design to make assembly and servicing easier,
• Larger oil filler plug,
• New O ring seal on end plate,
• 1/8 BSP breather fitting,
• Supplied with bolts,
• Available in 6 ratios: 0%(Std), +15%, +25%, +40%, +50% or +60%,
• Twice the power, twice the speed,
• Decreased motor effort, saving motors and batteries,
• Superior design and material grades eliminating breakage,
• Sustained line rate on hard pulls,
• Higher maximum load capacity.

PLEASE NOTE, THESE ARE ORDERED UPON SALE, DUE TO LARGE AMOUNT OF CUSTOMISATIONS

If you are unsure of your winching requirements, or have any questions or queries, please feel free to contact us!
